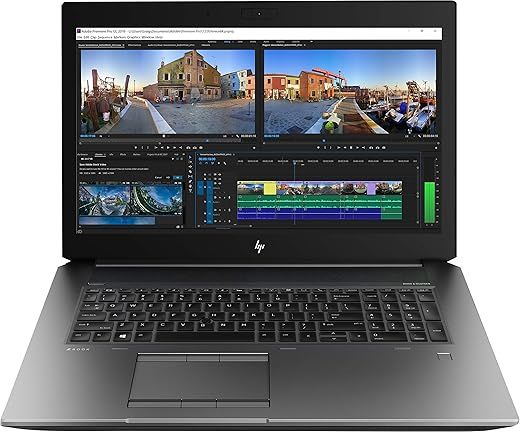

HP ZBOOK 17 G5 i5/9th gen/16GB Memory/512 Nvme ssd/17" FHD GORILLA SCREEN WITH 4K SUPPORT

Pixel perfect display • Create stunning visuals with one billion colors on the HP DreamColor 4K UHD antiglare display3. With an integrated color calibration system and 100% Adobe RGB, your colors will be vibrant and accurate every single time.

HP's most expandable laptop, no tools required • With up to 50 million different configurations4, the HP ZBook 17 can be customized to meet any demand. And when your technology needs to evolve, you can upgrade storage or memory in seconds without tools.

Featuring • Be productive in any situation. Windows 10 Pro and powerful security, collaboration, and connectivity features from HP help you power through your day on the HP ZBook 17.

• Experience enhanced visualization and develop life-like VR experiences on-the-go with the latest NVIDIA® Quadro® P5200 graphics card.

• Work with confidence knowing your HP ZBook 17 has been tested and certified for peak performance with leading software applications from Adobe, Autodesk, SolidWorks and more.

• Protect your work with HP Sure View that activates a privacy screen at the touch of a button and RAID 1 that keeps a backup copy of all your files in case you ever need it.

• Do more at once with next-gen 6-core Intel® processors designed to handle complex, multi-threaded apps like Adobe Premier Pro and fast core clock and boost with Autodesk 3ds Max.

• Confidently take your work on-location knowing your ZBook 17 was built for 24 x 7 x 365 workloads and passed 14 rigorous military standard tests like shock, drop and dust.

• Save and access large files locally with up to 10 TB storage and 5 drives. Get 6 TB local NVMe storage - up to 21x faster than standard HDD and 6x faster than SATA SSD.

• Speed up your workflow with up to 128 GB RAM for fast performance with rendering, editing and visual effects.

• Experience fast transfer and upload speeds with dual Thunderbolt™ 3 ports. Keep all your devices connected with USB 3.0, HDMI, SD card, Smart Card Reader and Thunderbolt™ 3 ports.

• Innovative docking solution that takes you from laptop to desktop experience. Connect dual 4K UHD displays, charge your devices, take a conference call, and transfer data quickly.

• Accidents happen - which is why we designed our minor spill-resistant full-sized chiclet keyboard with a drain hole so liquid comes out the bottom for easy cleanup.

Available Operating Systems Windows 10 Pro 64 - HP recommends Windows 10 Pro for business1 Windows 10 Home 641 Windows 10 Pro for Workstations 641 FreeDOS 2.0 _ Red Hat® Enterprise Linux® 7 - Web support only33 Ubuntu 16.04.3 LTS - Web support only33

Processor family23'4'31-32-34 Intel® Xeon® processor (E-2176M, E- 2186M); 8th Generation Intel® Core™ i9 processor (i9-8950HK); 8th Generation Intel® Core™ i7+ processor (Core™ i7 and Intel® Optane™ memory) (i7-8750H, i7-8850H); 8th Generation Intel® Core™ i7 processor (i7-8750H, i7-8850H); 8th Generation Intel® Core™ i5+ processor (Core™ i5 and Intel® Optane™ memory) (i5-8300H, i5-8400H); 8th Generation Intel® Core™ i5 processor (i5-8300H, i5-8400H)

Available Processors2-3'4'31,32'34 Intel® Xeon® E 2186M vPro™ with Intel® UHD Graphics P630 (2.9 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores); Intel® Xeon® E 2176M vPro™ with Intel® UHD Graphics P630 (2.7 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores); Intel® Core™ i9 8950HK with Intel® UHD Graphics 630 (2.9 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores); Intel® Core™ i7+ 8850H vPro™ (Core™ i7 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Core™ i7 8850H vPro™ with Intel® UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Core™ i7+ 8750H (Core™ i7 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Core™ i7-8750H with Intel® UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Core™ i5+ 8400H vPro™ (Core™ i5 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores); Intel® Core™ i5 8400H vPro™ with Intel® UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores); Intel® Core™ i5+ 8300H (Core™ i5 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 630 (2.3 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores); Intel® Core™ i5-8300H with Intel® UHD Graphics 630 (2.3 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)

Display size (diagonal) 17.3"9

Maximum memory 128 GB DDR4-2667 non-ECC SDRAM; 64 GB DDR4-2667 ECC SDRAM; 64 GB DDR4-2667 non-ECC SDRAM 5’35 Transfer rates up to 2400 MT/s.

Memory slots 4 SODIMM

Internal storage up to 2 TB 5400 rpm SATA 6 500 GB up to 1 TB 7200 rpm SATA 6 up to 500 GB 7200 rpm SATA SED 6 up to 500 GB 7200 rpm SATA FIPS 140-2 SED 6 500 GB up to 2 TB 5400 rpm SATA SSHD 6 256 GB up to 1 TB SATA SSD 6 up to 256 GB M.2 SATA SED SSD 6 up to 512 GB M.2 SATA FIPS 140-2 SED SSD 6 256 GB up to 2 TB PCIe® NVMe™ M.2 SSD 6 256 GB up to 512 GB PCIe® NVMe™ M.2 SED SSD 6 2 x 1 TB up to 2 x 2 TB PCIe® NVMe™ M.2 SSD 6’35'36

Optical drive 2 TB Optical Solid State Hybrid Drive (SSHD); Blu-ray player and DVD-Writer

Display 17.3" diagonal FHD IPS eDP anti-glare LED-backlit with ambient light sensor, 300 cd/m2 (1920 x 1080); 17.3" diagonal HD SVA eDP anti-glare LED-backlit, 220 cd/m2 (1600 x 900); 17.3" diagonal 4K IPS eDP + PSR LED-backlit touch screen with Corning® Gorilla® Glass 4 and ambient light sensor, 400 cd/m2 (3840 x 2160); HP DreamColor 17.3" diagonal 4K IPS anti-glare LED-backlit, 400 cd/m2, 100% AdobeRGB (3840 x 2160) 9

Available Graphics Integrated: Intel® UHD Graphics 630; Intel® UHD Graphics P6309’10 Discrete: NVIDIA® Quadro® P1000 (4 GB GDDR5 dedicated); NVIDIA® Quadro® P2000 (4 GB GDDR5 dedicated); NVIDIA® Quadro® P3200 (6 GB GDDR5 dedicated); NVIDIA® Quadro® P4200 (8 GB GDDR5 dedicated); NVIDIA® Quadro® P5200 (16 GB GDDR5 dedicated); AMD Radeon™ Pro WX 4170 (4 GB GDDR5 dedicated)11 (Intel® UHD Graphics 630 integrated on Core™ i7, Core™ i5 and Core™ i9 processors. Intel® UHD Graphics P630 integrated on Xeon® processors.)

Audio HP tuned Bang & Olufsen, dual stereo speakers, HP World Facing Microphone supporting HP Noise Reduction software, dual array digital microphone, functions keys for volume up and down, combo microphone/headphone jack, HD audio, HP Clear Sound Amp 13

Expansion slots 1 UHS-II SD card reader; 1 smart card reader (SD supports next generation secure digital and is backward compatible to SDHC, SDXC)

Ports and Connectors Left side: 1 RJ-45; 1 USB 3.0 (charging); 2 USB 3.0 Right side: 1 HDMI 2.0; 1 headphone/microphone combo; 1 power connector; 1 Mini DisplayPort™ 1.3; 2 USB 3.1 Type-C™ Thunderbolt™ 3 (DisplayPort™ 1.3)

Input devices HP Collaboration Keyboard, full-size, spill-resistant, backlit, with drain and DuraKeys, clickpad with image sensor and glass surface, multi-touch gestures and taps enabled; Image sensor touchpad with on/off button, two-way scroll, gestures, three buttons; Pointstick with three additional pointstick buttons; Touchpad with Color Calibration Sensor37

Communications LAN: Integrated Intel® I219-LM GbE WLAN: Intel® Dual Band Wireless-AC 9560 802.1 1ac (2x2) Wi-Fi® and Bluetooth® 5.0 Combo; Intel® Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi® and Bluetooth® 5.0 Combo, non-vPro™ 7; WWAN: HP lt4132 LTE/HSPA+ 4G Mobile Broadband Module; Intel® XMM™ 7360 LTE Advanced 8,14 (Optional Near Field Communication (NFC) module)

Camera HP Privacy HD Camera 720p; HP Privacy HD IR Camera 720p, face authentication with Windows Hello 9-12-14.30

Available Software Bing search for IE11; Buy Office; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HP Noise Cancellation Software; HP Performance Advisor; HP Recovery Manager; HP Remote Graphics Software; HP Support Assistant; HP Velocity; Skype for Business Certified; HP LAN-WLAN Protection; HP JumpStart; HP Client Security Suite Gen4 15-16.17-18

Security management Absolute persistence module; Common Criteria EAL4+ Augmented Certified Discrete TPM 2.0 Embedded Security Chip; DriveLock and Automatic DriveLock; HP Device Access Manager; HP FingerPrint Sensor; HP Password Manager; HP Power On Authentication; HP Security Manager; Pre-boot authentication; HP Sure Click; Measured Boot; HP BIOS Config Utility (BCU); HP Client Catalog; HP Driver Packs; HP System Software Manager (SSM); HP Manageability Integration Kit Gen2; HP BIOSphere with Sure Start Gen4; HP Secure Disk Erase; HP Host Based Mac Address; Windows Defender19’20’21122’23’26127’28’29

Power 200 W Slim Smart external AC power adapter

Battery type HP Long Life 6-cell, 96 Wh Li-ion polymer26

Dimensions 41.6 x 28.8 x 3.3 cm (Height measurement taken at front of notebook.)

Weight Starting at 3.2 kg (Weight varies by configuration and components.)

Energy efficiency compliance ENERGY STAR® certified and EPEAT® Gold registered configurations available24

Environmental specifications Low halogen25
